MCY14-1B Fixed Axial Piston Pump
- Product No.:2019121194154
MCY14-1B Fixed Axial Piston Pump
Structural principle overview
Structural principle overview

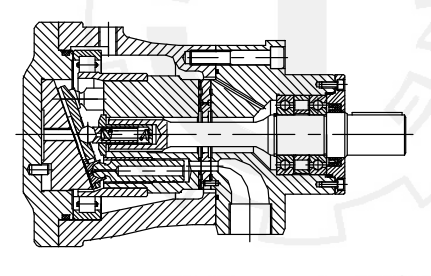

The principle of MCY14-1B quantitative axial plunger pump is relatively simple. The drive shaft of the pump is splined with the cylinder body to drive the cylinder body to rotate, so that the seven plungers evenly distributed on the cylinder body rotate around the center of the drive shaft. Each plunger end has a slide shoe, and the centering spring presses the slide shoe on the swash plate which has a certain inclination angle with the axis through the inner sleeve steel ball and the return plate. When the cylinder rotates, the plunger makes reciprocating movements at the same time to complete the oil suction and oil pressure actions. The centering spring presses the cylinder block on the oil pan through the outer sleeve, and plays an initial sealing role. Both the sliding shoe and the oil distribution plate adopt hydraulic pressure static balance, which not only reduces the wear of the pump, but also makes the pump have high volumetric efficiency and mechanical efficiency.

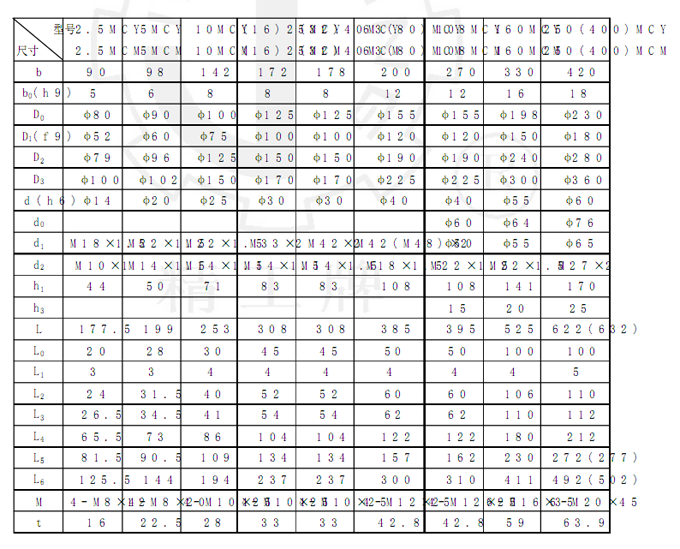

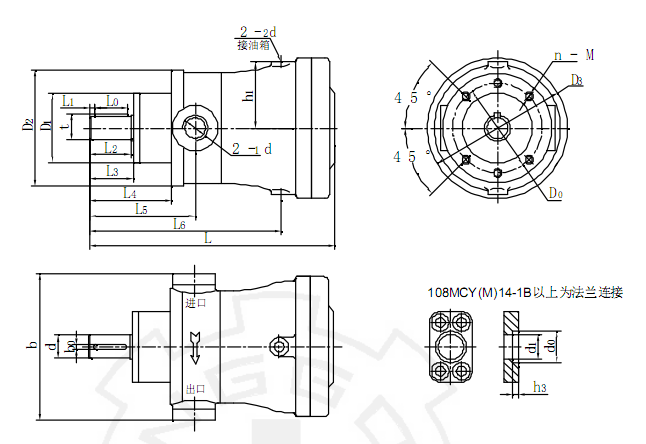

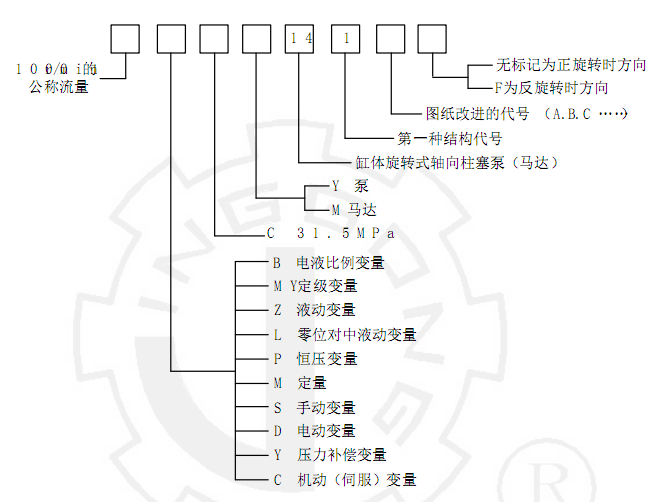

Piston pump 1.25MCY14-1B, piston pump 5MCY14-1B, piston pump 10MCY14-1B, piston pump 25MCY14-1B, piston pump 40MCY14-1B
Piston pump 63MCY14-1B, piston pump 80MCY14-1B, piston pump 160MCY14-1B, piston pump 250MCY14-1B
Piston pump 1.25MCY14-1B, piston pump 5MCY14-1B, piston pump 10MCY14-1B, piston pump 25MCY14-1B, piston pump 40MCY14-1B
Piston pump 63MCY14-1B, piston pump 80MCY14-1B, piston pump 160MCY14-1B, piston pump 250MCY14-1B
